CAUTION
Air compressor end plate is attached
with three rear mounting bracket
screws. Do not disturb end plate
when removing screws. Failure to
comply may result in damage to
equipment.
(16)
Remove
three
screws
(24)
from
compressor (3).
WARNING
Adhesive-sealant can burn easily,
can give off harmful vapors, and is
harmful to skin and clothing. To
avoid injury or death, keep away from
open fire and use in well-ventilated
area. If adhesive-sealant gets on skin
or clothing, wash immediately with
soap and water.
(17)
Coat threads of three screws (24) with
adhesive-sealant.
(18)

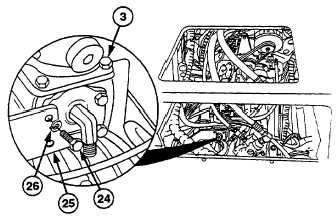

Install
mounting
bracket
(25)
on
compressor
(3)
with
three
new
lockwashers (26) and screws (24). Do not
tighten.
NOTE
Screws and locknuts attaching air
compressor
mounting
bracket
to
transmission mount may be installed
from under HET Tractor.
(19)

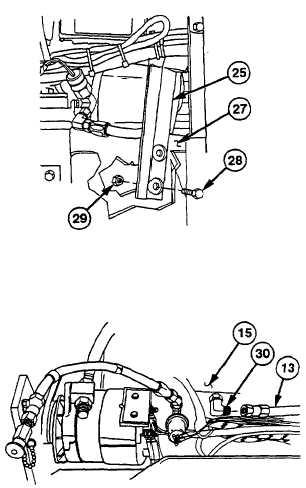

Install mounting bracket (25) on cradle
(27) with two screws (28) and new
locknuts (29).
(20)
Install oil line no. 2630 (13) on elbow (30)
on left side of engine (15).
