TM 9-2320-360-34-1
11-6. AIR COMPRESSOR REPLACEMENT (CONT)
(27)

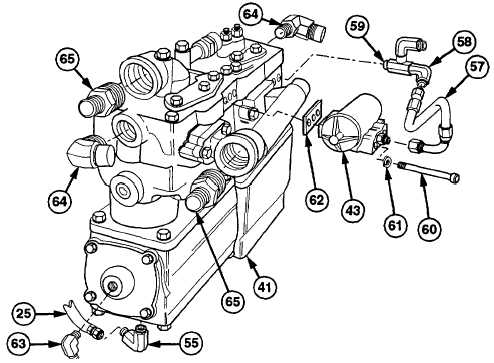

Remove oil line no. 2630 (25) from elbow (55) on air compressor (41).
(28)
Remove elbow (55) from compressor (41).
(29)
Remove hose no. 2114 (57) from elbow (58) and governor (43).
(30)
Remove tee (59) from air compressor (41).
(31)
Remove two screws (60), lockwashers (61), governor (43), and gasket (62) from air compressor (41).
Discard lockwashers and gasket.
(32)
Remove three elbows (63 and 64) and two adapters (65) from air compressor (41).
b.
Cleaning/Inspection
(1)
Clean old gasket material from engine and air compressor mounting flange.
WARNING
Dry cleaning solvent P-D-680 is toxic and flammable. Wear protective goggles and
gloves and use only in a well-ventilated area. Avoid contact with skin, eyes, and
clothes, and don't breathe vapors. DO NOT use near open flame or excessive heat.
The flash point is 100-138° F (38-59° C). If you become dizzy while using cleaning
solvent, get fresh air immediately and medical aid. If contact with eyes is made,
wash your eyes with water and get medical aid immediately.
(2)
Clean sealant residue from threaded holes with dry cleaning solvent.
(3)
Inspect drive hub, drive plate, mounting flange, housing, and end plate for damage.
(4)
Apply light coat of grease to splines of air compressor driven gear.
11-30
|
