TM 9-2320-360-34-1
CAUTION
Air compressor end plate is attached
with three rear mounting bracket
screws. Do not disturb end plate
when removing screws. Failure to
comply may result in damage to
equipment.

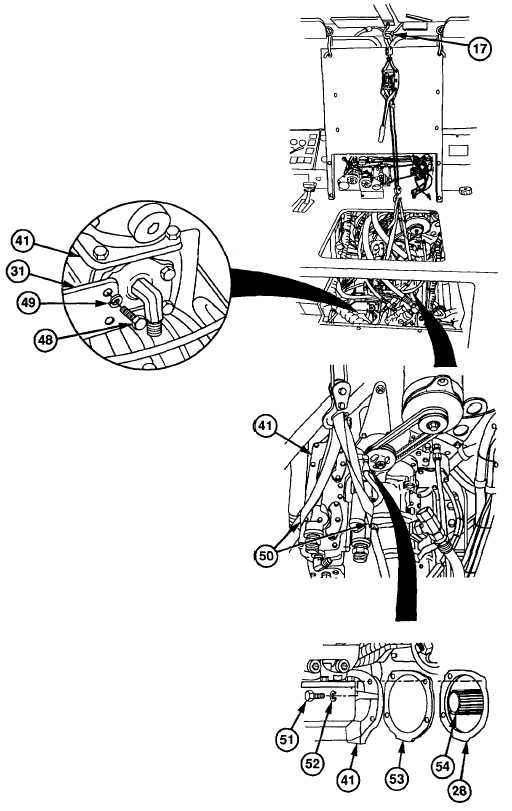

(20)
Remove
three
screws
(48)
and
lockwashers (49) from compressor (41).
Discard lockwashers.
(21)
Remove mounting bracket (31) and install
three screws (48) on compressor (41). Do
not tighten.
WARNING
Air compressor weighs 100 lb (45 kg).
If dropped, compressor may cause
serious injury.
(22)
Attach two lifting straps (50) and suitable
lifting device to compressor (41) and eye
bolt (17).
(23)
Remove
four
screws
(51)
and
lockwashers (52) from compressor (41).
Discard lockwashers.
NOTE
Gently strike compressor with soft-
faced mallet to unseat mounting
flange from engine.
(24)
Remove compressor (41) and gasket (53)
from engine (28) with aid of assistant.
Discard gasket.
NOTE
Drive coupling may stay on air
compressor.
(25)
Remove drive coupling (54) from engine
(28).
(26)
Remove
two
lifting
straps
(50)
and
suitable lifting device from compressor
(41) and eye bolt (17).
11-29
|
