TM 9-2320-360-34-1
11-6. AIR COMPRESSOR REPLACEMENT (CONT)
CAUTION
Plug
hydraulic
lines
and
cap
hydraulic
fittings
to
prevent
contaminants from entering systems.
Failure to do so may cause system
failure.
(13)

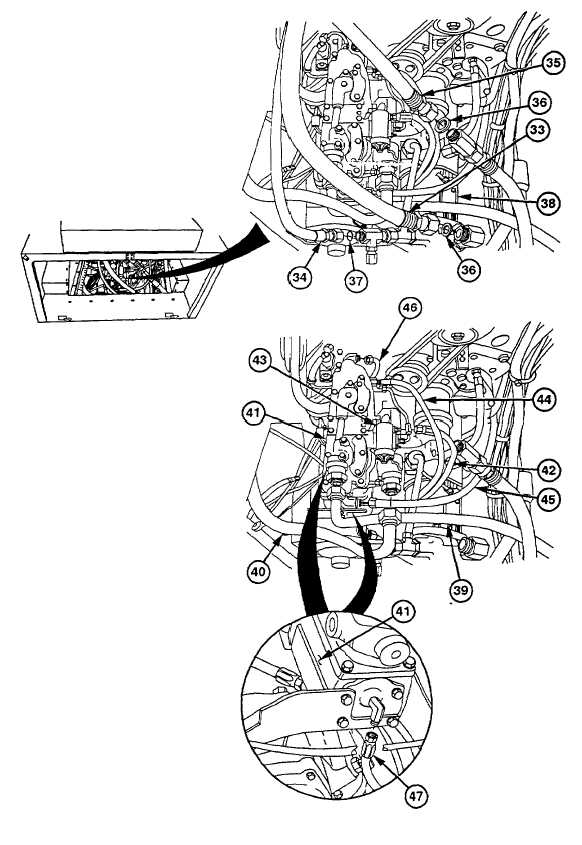

Place drain pan under hoses (33 thru 35).
(14)
Remove hose no. 2302 (33), hose no.
2701 (34), hose no. 2778 (35), and
preformed packings (36 and 37) from
steering pump (38). Discard preformed
packings.
(15)
Remove air line no. 2001 (39) and air line
no. 2600 (40) from compressor (41).
(16)
Remove air line no. 2159 (42) from air
governor (43).
(17)
Remove air line no. 2096 (44) from
compressor (41).
(18)
Remove two coolant lines no. 2628 (45
and 46) from compressor (41).
(19)
Remove oil line no. 2629 (47) from
compressor (41).
11-28 Change 1
|
