TM 9-2320-360-34-1
NOTE
Location of plastic cable ties should
be marked before removal.
(10)

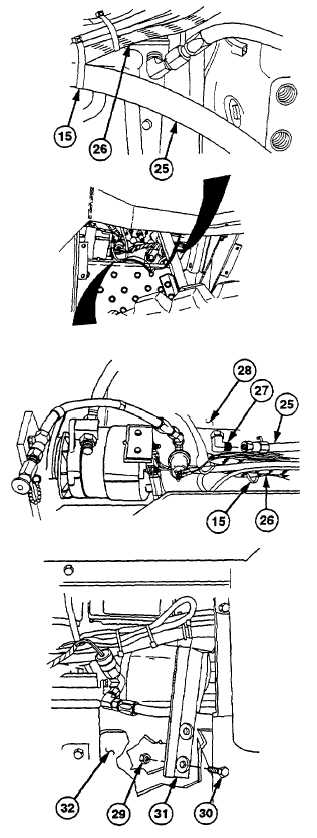

Remove plastic cable ties (15) securing oil
line no. 2630 (25) to wire harness (26).
(11)
Remove oil line no. 2630 (25) from elbow
(27) on left side of engine (28).
NOTE
Screws and locknuts attaching air
compressor
mounting
bracket
to
transmission
mount
must
be
removed from under HET Tractor.
(12)
Remove two locknuts (29) and screws
(30) from mounting bracket (31) on cradle
(32) with aid of assistant Discard locknuts.
11-27
|
