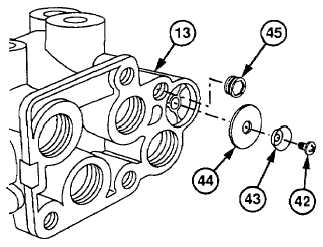

Remove screw (42), retainer (43), and
diaphragm (44) from housing (13).
(26)
Remove pipe plug (45) from housing (13).
b.
Cleaning/Inspection
WARNING
Dry cleaning solvent P-D-680 is toxic and flammable. Wear protective goggles and
gloves and use only in a well-ventilated area. Avoid contact with skin, eyes, and
clothes, and don't breathe vapors. DO NOT use near open flame or excessive heat.
The flash point is 100-138° F (38-59° ). If you become dizzy while using cleaning
solvent, get fresh air immediately and medical aid. If contact with eyes is made,
wash your eyes with water and get medical aid immediately.
(1)
Clean metal parts in dry cleaning solvent.
(2)
Inspect parts for damage, cracks, breaks, or deterioration.
(3)
Inspect rubber parts for cracks or deterioration.
(4)
Inspect machined surfaces for deep scratches.
(5)
Remove small nicks or burrs from pistons and housings with crocus cloth.
(6)
Replace unserviceable parts.
c.
Assembly
WARNING
Pipe thread sealing compound can
burn easily, can give off harmful
vapors, and is harmful to skin and
clothing. To avoid injury or death,
keep away from open fire and use in
well-ventilated area. If pipe thread
sealing compound gets on skin or
clothing, wash immediately with soap
and water.

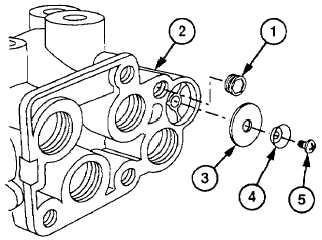

(1)
Coat threads of pipe plug (1) with pipe
thread sealing compound.
(2)
Install pipe plug (1) in housing (2).
(3)
Install diaphragm (3), retainer (4), and
screw (5) in housing (2).
