TM 9-2320-360-34-1
11-5. BRAKE TREADLE VALVE REPAIR (CONT)
CAUTION
Lubricate all preformed packings,
bores, and mating surfaces with
silicone lubricant before assembly.
Failure to comply may result in
damage to equipment.
(4)

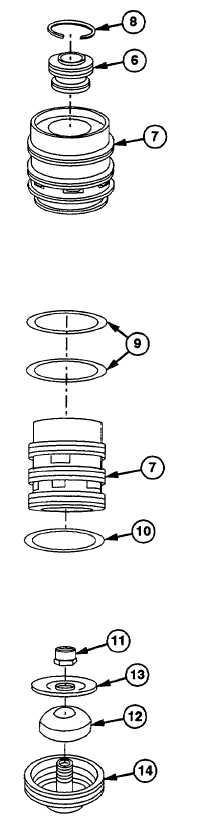

Install valve stem guide (6) in lower static
piston body (7).
WARNING
Wear eye protection and use care
when
installing
retaining
rings.
Retaining rings are under spring
tension and can act as projectiles
when released causing severe eye
injury.
(5)
Install retaining ring (8) in lower static
piston body (7).
(6)
Install two new preformed packings (9)
and new preformed packing (10) on lower
static piston body (7).
WARNING
Adhesive-sealant can burn easily,
can give off harmful vapors, and is
harmful to skin and clothing. To
avoid injury or death, keep away from
open fire and use in well-ventilated
area. If adhesive-sealant gets on skin
or clothing, wash immediately with
soap and water.
(7)
Coat threads of nut (11) with adhesive-
sealant.
NOTE
Do not lubricate resilient mount.
(8)
Install resilient mount (12), spring seat
(13), and nut (11) on lower piston (14).
11-18
|
