TM 9-2320-360-34-1
11-5. BRAKE TREADLE VALVE REPAIR (CONT)
(19)

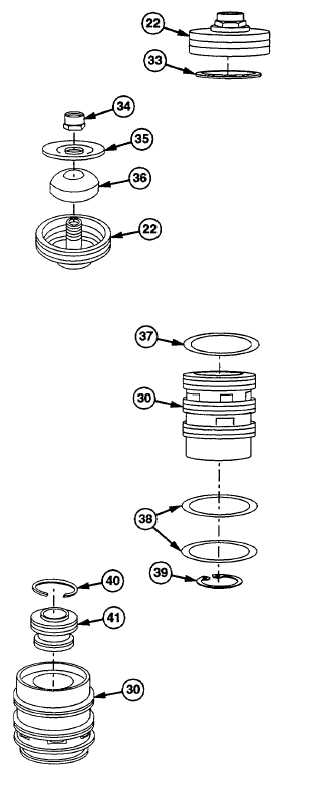

Remove preformed packing (33) from
lower piston (22). Discard preformed
packing.
(20)
Remove nut (34), spring seat (35), and
resilient mount (36) from lower piston (22).
(21)
Remove preformed packing (37) and two
preformed packings (38) from lower static
piston body (30). Discard preformed
packings.
WARNING
Wear eye protection and use care
when
removing
retaining
rings.
Retaining rings are under spring
tension and can act as projectiles
when released causing severe eye
injury.
(22)
Remove retaining ring (39) from lower
static piston body (30).
(23)
Remove retaining ring (40) from lower
static piston body (30).
(24)
Remove valve stem guide (41) from lower
static piston body (30).
11-16
|
