TM 9-2320-360-34-1
WARNING
Wear eye protection and use care
when
removing
retaining
rings.
Retaining rings are under spring
tension and can act as projectiles
when released causing severe eye
injury.
(13)

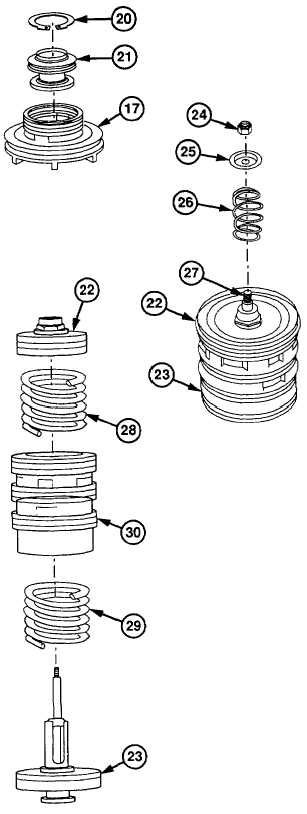

Remove retaining ring (20) from piston
(17).
(14)
Remove inlet cartridge (21) from piston
(17).
WARNING
Internal pistons are under moderate
spring
tension.
Keep
pistons
compressed when removing locknut.
Failure to comply may result in injury
to personnel.
(15)
Compress pistons (22 and 23) and
remove locknut (24), guide (25), and
spring (26) from stem bolt (27) with aid of
assistant. Discard locknut.
NOTE
Thin gage spring is located on relay
piston side of lower static piston
housing.
(16)
Remove lower piston (22), spring (28),
spring (29), and relay piston (23) from
lower static piston body (30).
(17)
Remove stem bolt (27) from relay piston
(23).
(18)
Remove preformed packing (31) and
preformed packing (32) from relay piston
(23). Discard preformed packings.
11-15
|
