TM 9-2320-360-34-1
11-5. BRAKE TREADLE VALVE REPAIR (CONT)
(6)

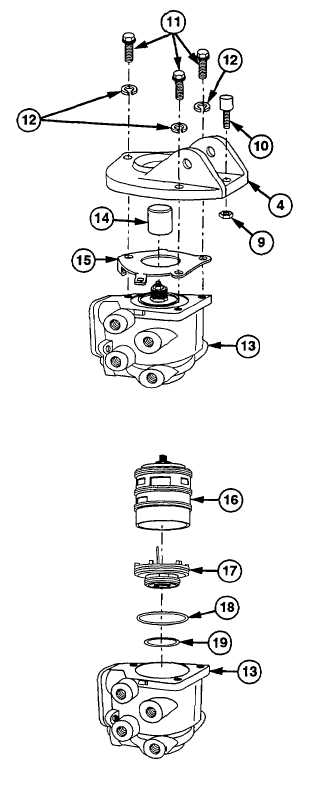

Remove nut (9) and stop button (10) from
cover (4).
(7)
Remove three screws (11), lockwashers
(12), and cover (4) from housing (13).
Discard lockwashers.
(8)
Remove sleeve (14) from housing (13).
NOTE
Three tabs must be pryed out to
remove retaining plate.
(9)
Remove retaining plate (15) from housing
(13).
(10)
Remove lower static piston assembly (16)
from housing (13).
NOTE
Upper static piston can be removed
by tapping housing on wooden block
(11)
Remove upper static piston (17) from
housing (13).
(12)
Remove preformed packing (18) and
preformed packing (19) from piston (17).
Discard preformed packings.
11-14
|
