TM 9-2320-360-34-1
11-5. BRAKE TREADLE VALVE REPAIR
This task covers:
a. Disassembly
d. Testing
b. Cleaning/lnspection
e. Follow-On Maintenance
c. Assembly
INITIAL SETUP
Equipment Conditions
Materials/Parts
Brake treadle removed (TM 9-2320-360-20).
Adhesive-Sealant (Item 6, Appendix B)
Chips, Soap (Item 15, Appendix B)
Tools and Special Tools
Cloth, Crocus (Item 16, Appendix B)
Tool Kit, Genl Mech (Item 202, Appendix E)
Compound, Sealing, Pipe Thread (Item 28,
Pliers, Retaining Ring (Item 108, Appendix E)
Appendix B)
Pliers, Retaining Ring (Item 109, Appendix E)
Solvent, Dry Cleaning (Item 54, Appendix B)
Plug, Pipe, 1/4 In. (8) (Item 114, Appendix E)
Lockwashers (3) (Item 136, Appendix F)
Plugs, Pipe, 1/2 In. (2) (Item 113, Appendix E)
Parts Kit, Air Flow (Item 207, Appendix F)
Vise, Machinist's (Item 207, Appendix E)
Pins, Cotter (2) (Item 217, Appendix F)
Wrench, Torque, 0-75 Lb-In. (Item 237,
Appendix E)
Personnel Required
Two

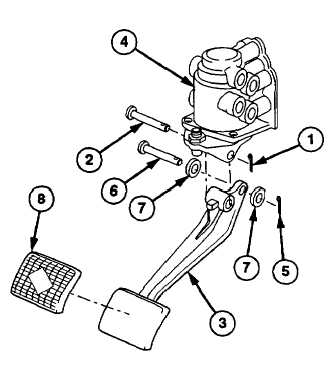

a.
Disassembly
(1)
Remove cotter pin (1) from pin (2).
Discard cotter pin.
(2)
Remove pin (2) and pedal (3) from cover
(4).
(3)
Remove cotter pin (5) from pin (6).
Discard cotter pin.
(4)
Remove pin (6) and two rollers (7) from
pedal (3).
NOTE
Do step (5) only if pad is damaged.
(5)
Remove pad (8) from pedal (3).
11-13
|
