TM 9-2320-360-34-1
11-3. AXLE NO. 1 AND AXLE NO. 4 BRAKE BRACKET/CAMSHAFT REPAIR (CONT)
d.
Assembly
NOTE
Install bushings only if they were
removed.
(1)

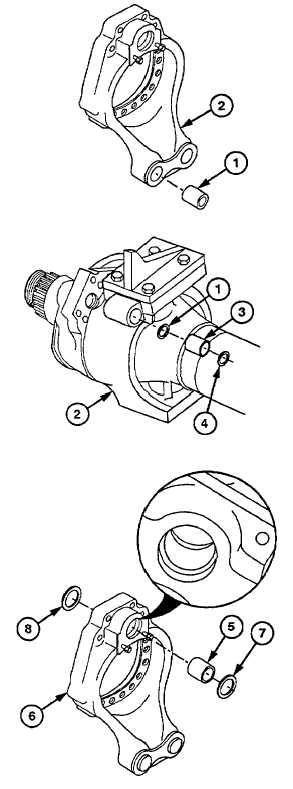

Install two bushings (1) in brake bracket
(2).
e.
Installation
CAUTION
All brake camshaft seals must be
installed with numbered side of seal
facing spindle and seal lips facing
away from spindle. Failure to comply
may result in seals coming out of
position and brakes not releasing.
(1)
Install new seal (1), numbered side first, in
spindle assembly (2).
CAUTION
Bushing should be installed 0.75 in.
(1.9
cm)
in
spindle
assembly.
Installing bushing further will plug
grease passage.
(2)
Install bushing (3) in spindle assembly (2).
(3)
Install new seal (4), numbered side first, in
spindle assembly (2).
NOTE
Bushing should be installed until it is
flush with inside machined land
surface.
(4)
Install bushing (5) in brake bracket (6).
NOTE
Inner seal should be installed with lip
facing bushing.
(5)
Install new seal (7), numbered side first, in
brake bracket (6).
CAUTION
Outer seal must not be installed any
deeper
than
flush
with
spindle
assembly. Failure to comply will
cause grease leak and/or plugged
grease passage.
(6)
Install new seal (8), numbered side first, in
brake bracket (6).
11-6 Change 1
|
