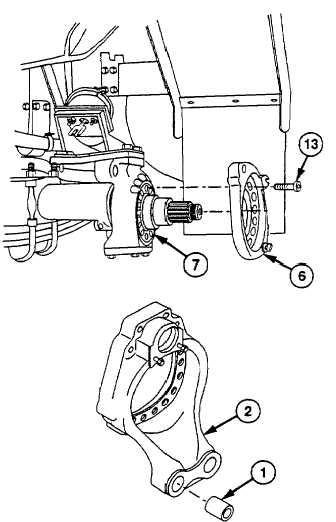

Remove 16 sockethead screws (13) and
brake bracket (6) from spindle assembly
(7).
b.
Disassembly
NOTE
Remove bushings only if they fail
inspection.
(1)
Remove two bushings (1) from brake
bracket (2).
c.
Cleaning/lnspection
WARNING
Dry cleaning solvent P-D-680 is toxic and flammable. Wear protective goggles and
gloves and use only in well-ventilated area. Avoid contact with skin, eyes, and
clothing, and don't breath vapors. DO NOT use near open flame or excessive heat.
The flash point is 100-138° F (38-59° C). If you become dizzy while using cleaning
solvent, get fresh air immediately and medical aid. If contact with eyes is made,
wash your eyes with water and get medical aid immediately.
(1)
Clean brake bracket and parts with dry cleaning solvent.
WARNING
Compressed air for cleaning purposes will not exceed 30 psi (207 kPa). Use only
with effective chip guarding and personal protective equipment (goggles/shield,
gloves, etc.).
(2)
Dry parts with compressed air.
(3)
Check brake bracket for expanded anchor pin holes and for cracks. Replace damaged brake brackets and
anchor pin bushings.
(4)
Check anchor pins for corrosion and wear. Replace damaged anchor pins.
(5)
Check camshafts for cracks, wear, and corrosion. Check the cam head, bearing journals, and splines.
Replace damaged camshafts.
