10-8. AXLE NO. 2 AND AXLE NO. 3 SPINDLE AND AXLE SHAFT REPAIR
This task covers:
a. Removal
d. Assembly
b. Disassembly
e. Installation
c. Cleaning/Inspection
f. Follow-On Maintenance
INITIAL SETUP
Equipment Conditions
Materials/Parts
Brake bracket removed (11-4).
Adhesive-Sealant (Item 3, Appendix B)
Adhesive-Sealant (Item 4, Appendix B)
Tools and Special Tools
Adhesive-Sealant (Item 6, Appendix B)
Tool Kit, Genl Mech (Item 202, Appendix E)
Cloth, Crocus (Item 16, Appendix B)
Caps, Vise Jaw (Item 17, Appendix E)
Compound, Sealing, Pipe Thread (Item 28,
Compressor Unit, Air (Item 24, Appendix E)
Appendix B)
Goggles, Industrial (Item 57, Appendix E)
Grease, General Purpose (Item 34, Appendix B)
Nut, 1/4 In. (Item 100, Appendix E)
Oil, Lubricating (Item 44, Appendix B)
Screw, 1/4 In. x 3 In. (Item 146, Appendix E)
Solvent, Dry Cleaning (Item 54, Appendix B)
Socket, Sockethead Screw, 12 mm (Item 174,
Appendix E)
Vise, Machinist's (Item 207, Appendix E)
Washer, Flat, 1/4 In. (Item 208, Appendix E)
Wrench, Torque, 0-300 Lb-In. (Item 235,
Appendix E)
a.
Removal
NOTE
Axle no. 2 and axle no. 3 spindles
and axle shafts are replaced the
same way. Axle no. 2 is shown.

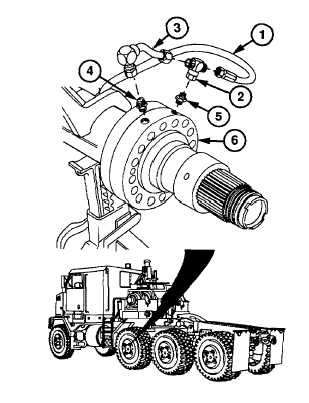

(1)
Remove hose (1) from tee (2).
(2)
Remove tube assembly (3) from tee (2)
and fitting (4).
(3)
Remove tee (2) from fitting (5).
(4)
Remove fitting (5) from spindle (6).
(5)
Remove fitting (4) from spindle (6).
