TM 9-2320-360-34-1
10-8. AXLE NO. 2 AND AXLE NO. 3 SPINDLE AND AXLE SHAFT REPAIR (CONT)
WARNING
Screw, washer, and nut are installed
in step (6) to retain spindle during
removal. Failure to install them may
result in spindle falling, causing
injury to personnel.
(6)

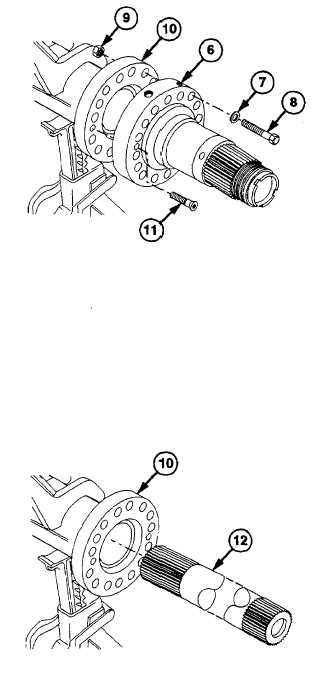

Loosely install washer (7), screw (8), and
nut (9) through top hole of axle housing
(10) and spindle (6).
WARNING
Spindle is heavy. Use caution when
removing. Failure to comply may
cause injury.
(7)
Remove two screws (11) from spindle (6).
NOTE
It may be necessary to strike end of
spindle with soft faced hammer to
separate from axle housing.
(8)
Separate spindle (6) from axle housing
(10).
(9)
Remove nut (9), screw (8), and washer (7)
while supporting spindle (6).
(10)
Remove spindle (6) from axle housing
(10).
WARNING
Collar slides loosely on axle shaft.
Use caution when handling axle
shaft. Failure to comply may result in
injury.
(11)
Remove axle shaft assembly (12) from
axle housing (10).
10-50
|
