TM 9-2320-360-34-1
10-7. AXLE NO. 4 PIVOT, SPINDLE, AND AXLE SHAFT REPAIR (CONT)
WARNING
Pipe thread sealing compound can
burn easily, can give off harmful
vapors, and is harmful to skin and
clothing. To avoid injury or death,
keep away from open fire and use in
well-ventilated area. If pipe thread
sealing compound gets on skin or
clothing, wash immediately with soap
and water.
CAUTION
Use pipe thread sealing compound
sparingly only on pipe threads. Do
not
apply
compound
to
hose
connections. Damage to equipment
may result.
(14)

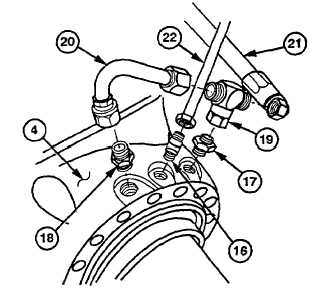

Coat threads of elbow (16), fitting (17),
and fitting (18) with pipe thread sealing
compound.
(15)
Install fitting (18), elbow (16), and fitting
(17) on pivot and spindle assembly (4).
(16)
Install tee (19) on fitting (17).
(17)
Install tube assembly (20) on tee (19) and
fitting (18).
(18)
Install hose (21) on tee (19).
(19)
Install hose (22) on elbow (16).
f.
Follow-On Maintenance
(1)
Install brake bracket and camshaft (para 11-3).
(2)
Install rear brake chamber (TM 9-2320-360-20).
(3)
Install tie rod end (TM 9-2320-360-20).
(4)
Install drag link (left side only (para 13-3).
(5)
Fill differential (LO 9-2320-360-12).
(6)
Adjust steering stops (para 13-9).
10-48 Change 1
|
