TM 9-2320-360-34-1
Table 10-3. Determining Shim Thickness
Distance Between Pivot and Spindle
Assembly and Link Pin
Shim Thickness
0.018 to 0.022 in. (0.45 to 0.55 mm)
0.016 in. (0.4 mm)
0.022 to 0.026 in. (0.55 to 0.65 mm)
0.020 in. (0.5 mm)
0.026 to 0.030 in. (0.65 to 0.75 mm)
0.024 in. (0.6 mm)
0.030 to 0.033 in. (0.75 to 0.85 mm)
0.028 in. (0.7 mm)
0.033 to 0.037 in. (0.85 to 0.95 mm)
0.031 in. (0.8 mm)
0.037 to 0.041 in. (0.95 to 1.05 mm)
0.035 in. (0.9 mm)
0.041 to 0.045 in. (1.05 to 1.15 mm)
0.039 in. (1.0 mm)
WARNING
On direct contact, uncured silicone
sealant irritates eyes. In case of
contact, flush eyes with water and
seek medical attention. In case of
skin contact, wipe off and flush with
water.
(g)
Coat upper surface of upper pivot
face (13) with silicone adhesive-
sealant.
(h)

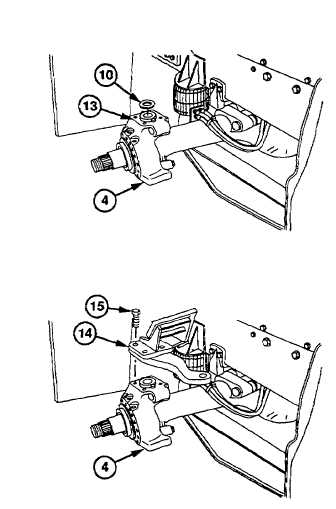

Install shim(s) (10) on pivot and
spindle assembly (4). If multiple
shims are used, install shims on the
pivot and spindle assembly in order
from
thinnest
to
thickest
with
thinnest shim contacting pivot and
spindle assembly and thickest shim
contacting cover.
(12)
Position steering arm (14) on pivot and
spindle assembly (4) by aligning marks
made during disassembly.
(13)
Install tour screws (15) in pivot and
spindle assembly (4). Torque to 250 lb-ft
(340 Nm), then to 500 lb-ft (670 Nm),
then to 720-800 lb-ft (976-1085 Nm).
10-47
|
