TM 9-2320-360-34-1
(11)

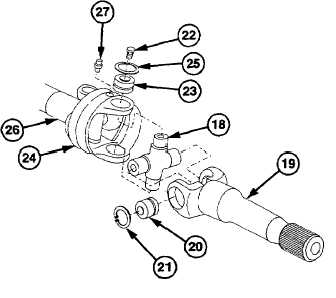

Install new cross (18) on shaft (19) with
two caps (20).
WARNING
Wear eye protection and use care
when
removing
retaining
rings.
Retaining rings are under spring
tension and can act as projectiles
when released causing severe eye
injury.
(12)
Install two new retaining rings (21) on
shaft (19).
(13)
Install two new screws (22) in new caps
(23).
(14)
Install shaft (19) in block (24) with two
caps (23).
(15)
Install two new retaining rings (25) in block
(24).
(16)
Repeat steps (1) through (5) to install
other shaft (26) into block (24).
(17)
Install two grease fittings (27) in block
(24).
Change 1 10-44.1 (10-44.2 blank)
|
