TM 9-2320-360-34-1
10-7. AXLE NO. 4 PIVOT, SPINDLE, AND AXLE SHAFT REPAIR (CONT)
(4)

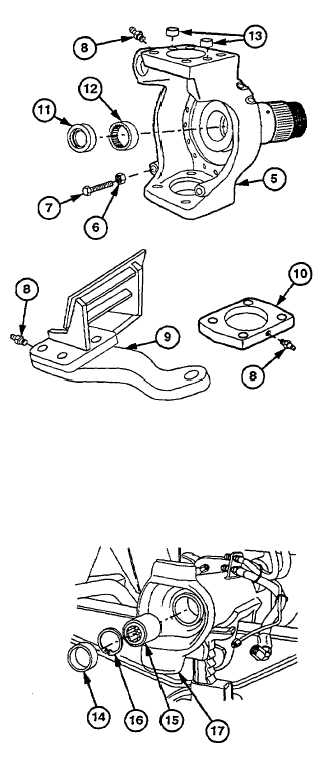

Install jamnut (6) and steering stop bolt (7)
on pivot and spindle housing (5).
(4.1)
Tighten jamnut (6) on steering stop bolt
(7).
(5)
Install three grease fittings (8) in steering
arm (9), lower cover (10), and pivot and
spindle housing (5).
(6)
Lightly coat new seal (11) and bearing
(12) with grease.
NOTE
Seal is installed with flat side facing out.
(7)
Install bearing (12) and new seal (11) on
pivot and spindle housing (5).
NOTE
Do step (8) if pins were removed.
(8)
Install two pins (13) on pivot and spindle
housing (5).
(9)
Lightly coat new seal (14) and bearing
(15) with grease.
WARNING
Wear eye protection and use care
when
removing
retaining
rings.
Retaining rings are under spring
tension and can act as projectiles
when released causing severe eye
injury.
NOTE
Seal is installed with flat side facing
out.
(10)
Install bearing (15), retaining ring (16),
and new seal (14) on axle housing (17).
10-44 Change 1
|
