Installation
NOTE
·
Both
pivot
and
spindle
assemblies are installed the same
way.
·
Do step (1) if link collars were
removed.
(1)

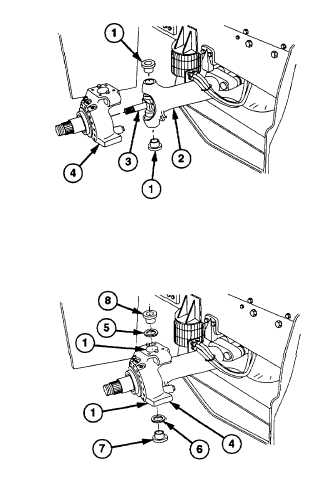

Insert link collars (1) into axle housing (2).
(2)
Install axle shaft (3) in axle housing (2).
(3)
Install pivot and spindle assembly (4) on
axle housing (2) with aid of assistant.
(4)
Coat link collars (1), seals (5 and 6), and
link pins (7 and 8) with grease.
NOTE
Seal must be installed with metal side
against link pin.
(5)
Install seal (5) on link pin (8).
(6)
Install link pin (8) through pivot and
spindle assembly (4) into link collar (1)
until metal edge of seal (5) is visible inside
pivot and spindle assembly (4).
NOTE
Seal must be installed with metal side
against link pin.
(7)
Install seal (6) on link pin (7).
(8)
Install link pin (7) through pivot and
spindle assembly (4) into link collar (1)
until metal edge of seal (6) is visible inside
pivot and spindle assembly (4).
