TM 9-2320-360-34-1
(9)

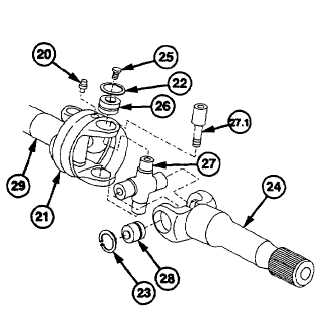

Remove two grease fittings (20) from
block (21).
WARNING
Wear eye protection and use care
when
removing
retaining
rings.
Retaining rings are under spring
tension and can act as projectiles
when released causing severe eye
injury.
(10)
Remove two retaining rings (22) from
block (21). Discard retaining rings.
(11)
Remove two retaining rings (23) from
shaft (24). Discard retaining rings.
(12)
Remove two screws (25) from caps (26).
Discard screws.
(13)
Remove two caps (26) from cross (27)
using removal tool and adapter (27.1).
Discard caps.
(14)
Remove shaft (24) from block (21).
NOTE
Tag and mark cross to aid in
installation.
(15)
Remove two caps (28) and cross (27)
from shaft (24) using press. Discard caps
and cross.
(16)
Repeat steps (10) through (15) to remove
other shaft (29) from block (21).
Change 1 10-42.1 (10-42.2 blank)
|
