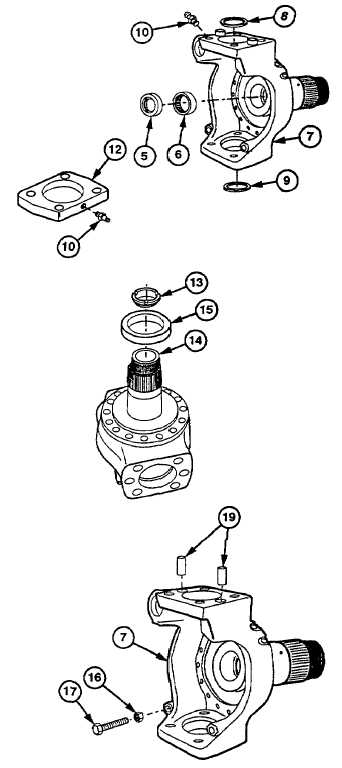

10-7. AXLE NO. 4 PIVOT, SPINDLE, AND AXLE SHAFT REPAIR (CONT)
(2)
Remove seal (5) and bearing (6) from
pivot and spindle housing (7). Discard
seal.
(3)
Remove two oil seals (8 and 9) from pivot
and spindle housing (7). Discard seals.
(4)
Remove three grease fittings (10) from
steering arm (11), lower cover (12), and
pivot and spindle housing (7).
NOTE
Do step (5) if spindle ring fails
inspection.
(5)
Remove spindle ring (13) from spindle
(14).
CAUTION
Use chisel on seal race surface only.
Do not allow chisel to contact
spindle. Failure to comply may result
in damage to equipment.
NOTE
Do
step
(6)
if
seal
race
fails
inspection.
(6)
Remove seal race (15) from spindle (14)
with chisel.
(7)
Loosen jamnut (16) on steering stop bolt
(17).
(7.1)
Remove steering stop bolt (17) and
jamnut
(16)
from
pivot
and
spindle
housing (7).
NOTE
Do step (8) it pins fail inspection.
(8)
Remove two pins (19) from pivot and
spindle housing (7).
