TM 9-2320-360-34-1
10-7. AXLE NO. 4 PIVOT, SPINDLE, AND AXLE SHAFT REPAIR (CONT)
WARNING
Steering arms are heavy. Use
caution
when
removing
steering
arms. Failure to comply may result in
injury.
NOTE
·
Removal procedure is the same
for both ends of axle.
·
Four screws removed from lower
cover in step (8) are not same
size as screws removed from
steering arm in step (12). Identify
screws after removal to avoid
improper installation.
(8)

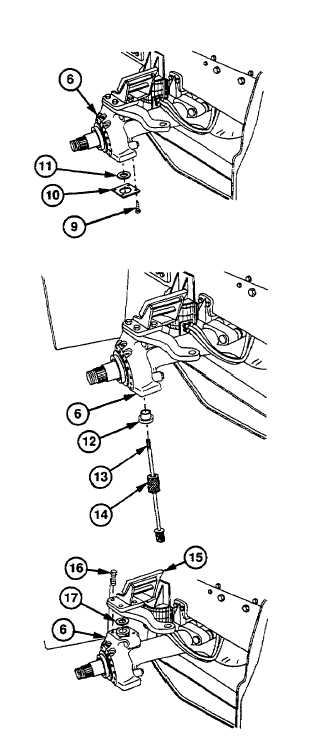

Remove four screws (9) and lower cover
(10) from pivot and spindle assembly (6).
Tag screws.
NOTE
Shims may stay on pivot and spindle
assembly.
(9)
Remove shim(s) (11) from lower cover
(10). Tag shim(s).
(10)
Remove link pin (12) from pivot and
spindle assembly (6) using king pin
extractor (13) and slide hammer (14).
(11)
Mark steering arm (15) and pivot and
spindle assembly (6).
NOTE
Shims may stay on pivot and spindle
assembly.
(12)
Remove four screws (16), steering arm
(15), and shims (17) from pivot and
spindle assembly (6). Tag screws and
shims.
10-40
|
