TM 9-2320-360-34-1
c.
Adjustment
NOTE
Perform adjustment only if a new
locking cylinder was installed.
(1)
Remove wheel chocks.
(2)
Start engine and build up air pressure to
125 psi (862 kPa) (Tm 9-2320-360-10).
(3)
Shift transfer case to low (TM 9-2320-360-10).
(4)
Move driveline control to LOCK position
(TM 9-2320-360-10).
(5)
Drive HET Tractor forward or backward 5
ft (1.5 m).
(6)
Turn
engine
switch
to
OFF
(TM 9-2320-360-10).
(7)
Chock wheels.
(8)

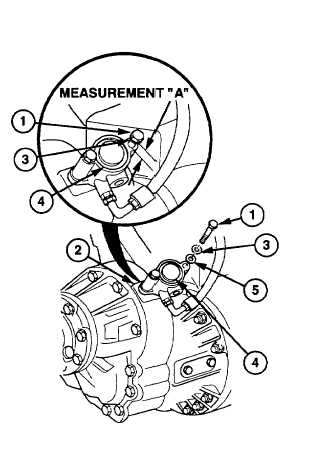

Tighten screw (1) slowly until screw
contacts fork in differential (2).
(9)
Measure distance between face of washer
(3) and top of locking cylinder (4) and
record measurement as A.
(10)
Determine shim kit thickness. Shim kit
thickness is A - 0.004 to 0.020 in. (0.102
to 0.508 mm).
(11)
Remove screw (1) and washer (3) from
locking cylinder (4).
NOTE
Shim kit thickness was determined in
step (9).
(12)
Install shim kit (5), washer (3), and screw
(1). Torque to 22-32 lb-ft (30-43 Nm).
d.
Follow-On Maintenance
(1)
Check axle oil level (LO 9-2320-360-12).
(2)
Check for oil and air leaks.
(3)
Remove wheel chocks.
Change 2 10-38.3 (10-38.4 blank)
|
