TM 9-2320-360-34-1
10-6.1. AXLE NO. 3 LOCKING CYLINDER REPLACEMENT/ADJUSTMENT (CONT)
b.
Installation
WARNING
On direct contact, uncured silicone
sealant irritates eyes. In case of
contact, flush eyes with water and
seek medical attention. In case of
skin contact, wipe off and flush with
water.
(1)

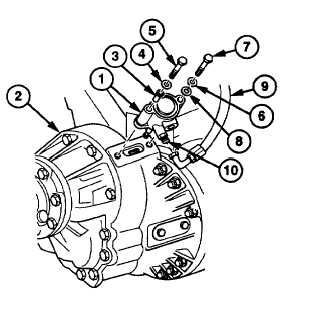

Coat mating surface of locking cylinder (1)
with silicone adhesive-sealant.
(2)
Install locking cylinder (1) on differential
(2).
(3)
Install plastic washer (3), washer (4), and
screw (5) on locking cylinder (1).
NOTE
·
If a new locking cylinder was
installed, perform steps (4) and
(6). If the same locking cylinder
was installed, perform steps (5)
and (7).
·
Install screw only to keep screw
hole in locking cylinder aligned
with differential. Screw should be
positioned so that three or four
threads of screw are engaged.
(4)
Install washer (6) and screw (7) on locking
cylinder (1).
(5)
Install washer (6), shim kit (8) and screw
(7) on locking cylinder (1).
(6)
Tighten screw (5) on locking cylinder (1) to
22-32 lb-ft (30-43 Nm).
(7)
Tighten screws (5) and (7) on locking
cylinder (1) to 22-32 lb-ft (30-43 Nm).
(8)
Install air line no. 2422 (9) on fitting (10).
10-38.2 Change 2
|
