TM 9-2320-360-34-1
10-6.1. AXLE NO. 3 LOCKING CYLINDER REPLACEMENT/ADJUSTMENT
This task covers:
a. Removal
c. Adjustment
b. Disassembly
d. Follow-On Maintenance
INITIAL SETUP
Equipment Conditions
Materials/Parts
Engine shut off (TM 9-2320-360-10).
Adhesive-Sealant (Item 2, Appendix B)
Parking brake on (TM 9-2320-360-10).
Tags, Identification (Item 56, Appendix B)
Wheels chocked.
Shim Kit (Item 322.1, Appendix F)
Air system drained (TM 9-2320-360-10).
Tools and Special Tools
Tool Kit, Genl Mech (Item 202, Appendix E)
Caliper Set, Micrometer, 0-6 In. (Item 15,
Appendix E)
Wrench, Torque, 0-175 Lb-Ft (Item 236,
Appendix E)

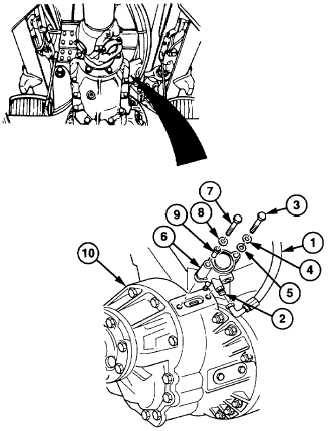

a.
Removal
(1)
Remove air line no. 2422 (1) from fitting
(2).
NOTE
·
Tag
and
mark
which
screw
location contains shim kit.
·
Only discard shim kits if a new
locking cylinder is to be installed.
(2)
Remove screw (3), washer (4), and shim
kit (5) from locking cylinder (6). Discard
shim kit.
(3)
Remove screw (7), washer (8), and plastic
washer (9) from locking cylinder (6).
NOTE
To remove locking cylinder pull
toward front of truck and outward.
(4)
Remove
locking
cylinder
(6)
from
differential (10).
Change 2 10-38.1
|
