TM 9-2320-360-34-1
10-6. AXLE NO. 2, 3, AND 4 OIL SEAL AND YOKE REPLACEMENT (CONT)
b.
Cleaning/Inspection
Clean foreign material from housing where
outside lip of seal seats.
c.
Installation

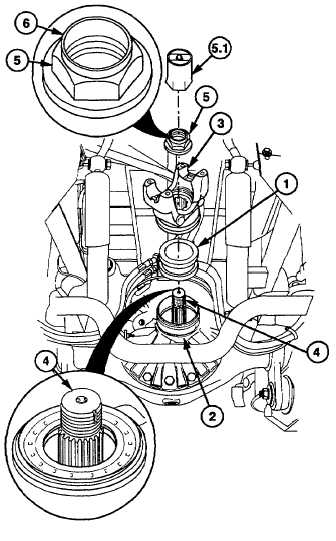

(1)
Coat new oil seal (1) with lubricating oil.
NOTE
·
Oil seal must be installed so that
spring side is against housing.
·
Oil seal is properly installed when
top of seal is 1/16 in. (1.59 mm)
below surface of housing.
(2)
Install new oil seal (1) in housing (2).
(3)
Install yoke (3) on shaft (4).
WARNING
On direct contact, uncured silicone
sealant irritates eyes. In case of
contact, flush eyes with water and
seek medical attention. In case of
skin contact, wipe off and flush with
water.
(3.1)
Coat face of yoke (3) and threads of shaft
(4) with silicone adhesive-sealant.
(4)
Install new locknut (5) on shaft (4) using
socket (5.1). Torque locknut as specified
in table 10-2 using yoke holder with aid of
assistant.
(4.1)
Inspect
to
see
that
adhesive
has
squeezed out around locknut (5). If
adhesive is not visible around entire
circumference, repeat steps (3.1) and (4).
(5)
Bend lip (6) of locknut (5) into slot in shaft
(4).
Table 10-2. Torque Values
Yoke/Seal Replaced
Torque Value
Axle No. 2 Input
680-796 lb-ft (922-1079 Nm)
Axle No. 2 Output
680-796 lb-ft (922-1079 Nm)
Axle No. 3 Input
680-796 lb-ft (922-1079 Nm)
Axle No. 3 Output
486-572 lb-ft (659-776 Nm)
Axle No. 4 Input
486-572 lb-ft (659-776 Nm)
d.
Follow-On Maintenance
(1)
Install propeller shaft (TM 9-2320-360-20).
(2)
Check differential and wheel end oil level. Add oil if necessary (LO 9-2320-360-12).
10-38 Change 1
|
