TM 9-2320-360-34-1
(11)

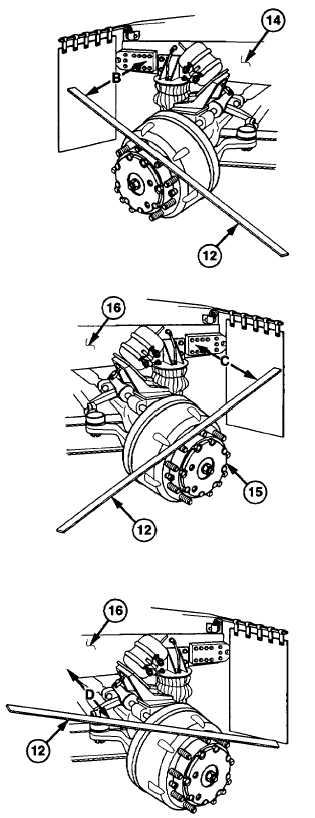

Measure and record distance B between
rear of straightedge (12) and right frame
rail (14).
(12)
Place straightedge (12) against machine-
surface outer edge of left brake drum (15).
(13)
Measure and record distance C between
front of straightedge (12) and left frame
rail (16).
(14)
Measure and record distance D between
rear of straightedge (12) and left frame rail
(16).
NOTE
·
If measurement in step (15) is
within 0.125 in. (3.18 mm) or less
than measurement in step (16),
no additional spacing is required.
Go to step (23).
·
If measurement in step (15) is
0.125 in. (3.18 mm) or more than
measurement
in
step
(16),
spacers must be removed from
torque rod.
·
If measurement in step (16) is
0.125 in. (3.18 mm) or more than
measurement
in
step
(15),
spacers must be added to torque
rod.
(15)
Add distance A to distance B and divide
by 2.
(16)
Add distance C to distance D and divide
by 2.
10-35
|
