TM 9-2320-360-34-1
10-4. AXLE NO. 4 REPLACEMENT (CONT)
(28)

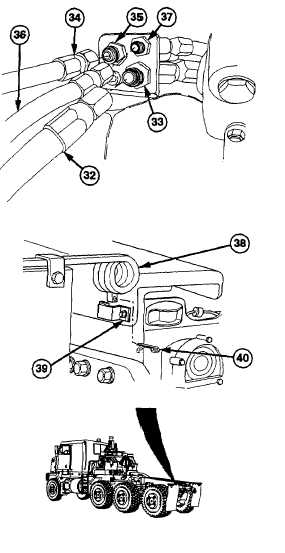

Install hose no. 2873 (32) on fitting (33).
(29)
Install hose no. 2016 (34) on fitting (35).
(30)
Install hose no. 2141 (38) on fitting (37).
NOTE
Left and right mud flaps are installed
the same way. Left mud flap is
shown.
(31)
Install mud flap bracket (38) on bracket
(39) with new cotter pin (40).
c.
Follow-On Maintenance
(1)
Install air springs (TM 9-2320-360-20).
(2)
Install axle no. 3 to axle no. 4 propeller shaft (TM 9-2320-360-20).
(3)
Install shock absorbers (TM 9-2320-360-20).
(4)
Fill axle differential and wheel ends (LO 9-2320-360-12).
(5)
Install brake drums (TM 9-2320-360-20).
(6)
Install lateral torque rod (para 15-3).
(7)
Align axle no. 4 (para 10-5).
10-32
|
