TM 9-2320-360-34-1
NOTE
Protective caps should be removed
from fittings covered during removal.
(24)

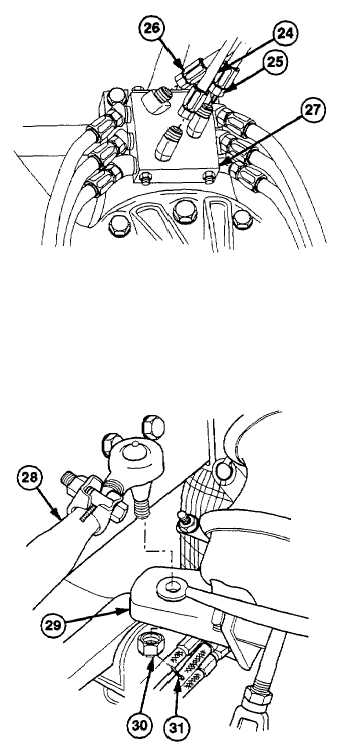

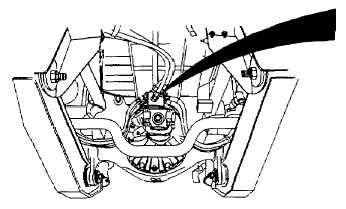

Install hose no. 2144 (24), no. 2369 (25),
and no. 2873 (26) on manifold (27).
WARNING
Support drag link when installing
hardware to prevent it from falling.
Failure to comply may result in
injury.
(25)
Insert rear of drag link (28) in steering arm
(29).
(26)
Install nut (30) on drag link (28). Torque
to 165 lb-ft (224 Nm). Continue to tighten
until slot in nut (30) is aligned with hole in
drag link (28).
(27)
Install new cotter pin (31) through nut (30)
and drag link (28).
10-31
|
