TM 9-2320-360-34-1
10-4. AXLE NO. 4 REPLACEMENT (CONT)
WARNING
Keep hands and feet clear of axle
until axle is secured by torque rod.
Failure to comply may result in injury
to personnel.
NOTE
It may be necessary to raise front of
differential with floor jack to aid in
installation of longitudinal torque rod.

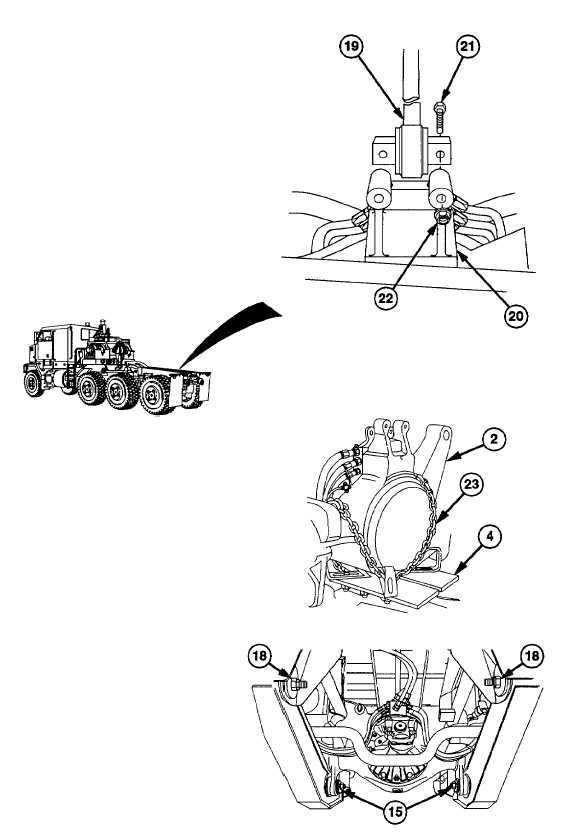

(20) Install longitudinal torque rod (19) on axle
housing (20) with two screws (21) and
new locknuts (22). Torque to 212 lb-ft
(287 Nm).
(21) Remove chain (23) from axle (2) and
transmission lift (4).
(22) Lower transmission lift (4) and remove
from HET Tractor.
(23) Tighten two locknuts (15) to 495 lb-ft (671
Nm) and two locknuts (18) to 800 lb-ft
(1085 Nm).
10-30
|
