TM 9-2320-360-34-1
10-4. AXLE NO. 4 REPLACEMENT (CONT)
NOTE
Screw, washer, and outside collar are
removed together.
(16)

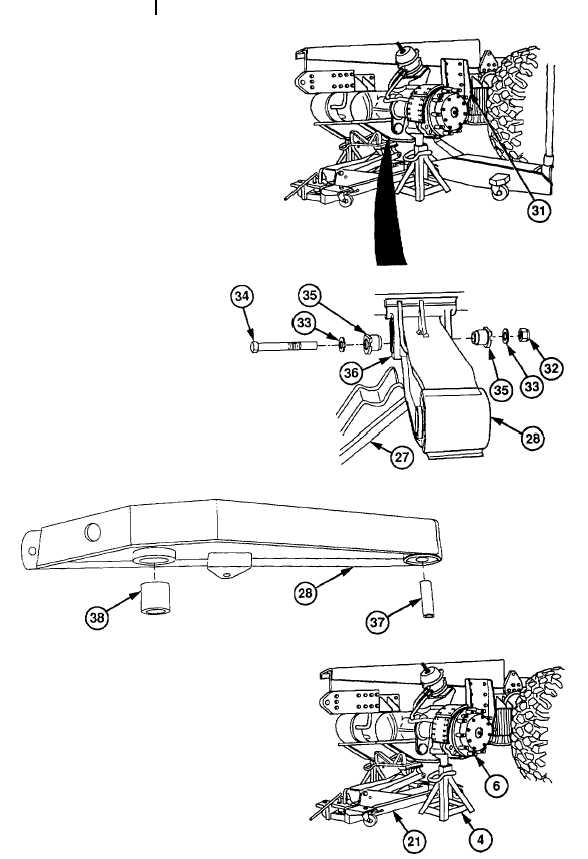

Remove locknut (32), two washers (33),
screw (34), and two collars (35) from
suspension beam (28) and axle bracket
(36). Discard locknut, washers, screw,
and collars.
NOTE
It
may
be
necessary
to
tap
suspension beam out of axle bracket
and frame hanger.
(17)
Lower
floor
jack
(27)
and
remove
suspension beam (28) from axle bracket
(36) and frame hanger (31).
(18)
Remove delrin liner (37) and steel sleeve
(38) from suspension beam (28). Discard
delrin liner and steel sleeve.
(19)
Repeat steps (14) thru (18) for other
suspension beam.
WARNING
Axle weighs 1760 lb (798 kg). Keep
out from under axle. Failure to
comply may result in injury or death
to personnel.
NOTE
Air pressure must be greater than 65
psi (448 kPa) to provide sufficient
clearance to install axle.
(20)
Raise transmission lift (21) enough to lift
axle (6) and remove jackstands (4).
10-26
|
