TM 9-2320-360-34-1
(21)

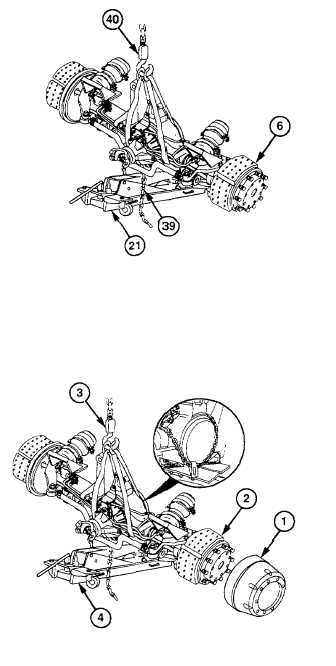

Lower transmission lift (21) and axle (6) to
lowest position.
(22)
Remove transmission lift (21) and axle (6)
from under HET Tractor with aid of
assistant.
(23)
Remove chain (39) from axle (6) and
transmission lift (21).
(24)
Attach lifting device (40) to axle (6).
(25)
Lift axle (6) and remove transmission lift
121
b.
Installation
(1)
Remove brake drums (1) from new axle
(2) (TM 9-2320-360-20).
(2)
Attach lifting device (3) to new axle (2).
WARNING
· Axle weighs 1760 lb (798 kg). Keep
out from under axle. Failure to
comply may result in injury or
death to personnel.
· Support axle with transmission lift.
Secure axle to transmission lift with
strap or chain. Failure to comply
may result in serious injury to
personnel.
(3)
Lift axle (2) and position on transmission
lift (4).
(4)
Secure axle (2) to transmission lift (4).
10-27
|
