TM 9-2320-360-34-1
WARNING
Axle may rotate forward during
removal of longitudinal torque rod.
Keep hands and feet away from axle.
Failure to comply may result in
serious injury to personnel.
(12)

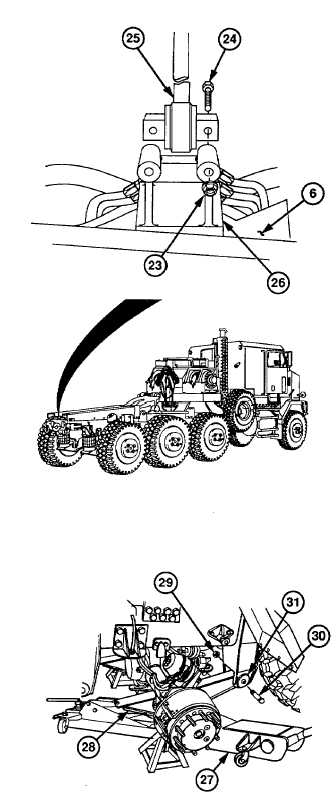

Remove two locknuts (23), screws (24),
and longitudinal torque rod (25) from axle
housing (26). Discard locknuts.
(13)
Secure longitudinal torque rod (25) out of
the way after removing it from axle (6).
WARNING
Suspension beam is heavy and can
fall. Keep out from under suspension
beam. Failure to comply may result
in injury to personnel.
NOTE
Both suspension beams are removed
the same way. Right side is shown.
(14)
Place floor jack (27) under center of
suspension beam (28).
(15)
Remove locknut (29) and screw (30) from
suspension beam (28) and frame hanger
(31) with aid of assistant. Discard locknut
and screw.
10-25
|
