TM 9-2320-360-34-1
10-4. AXLE NO. 4 REPLACEMENT (CONT)
(8)

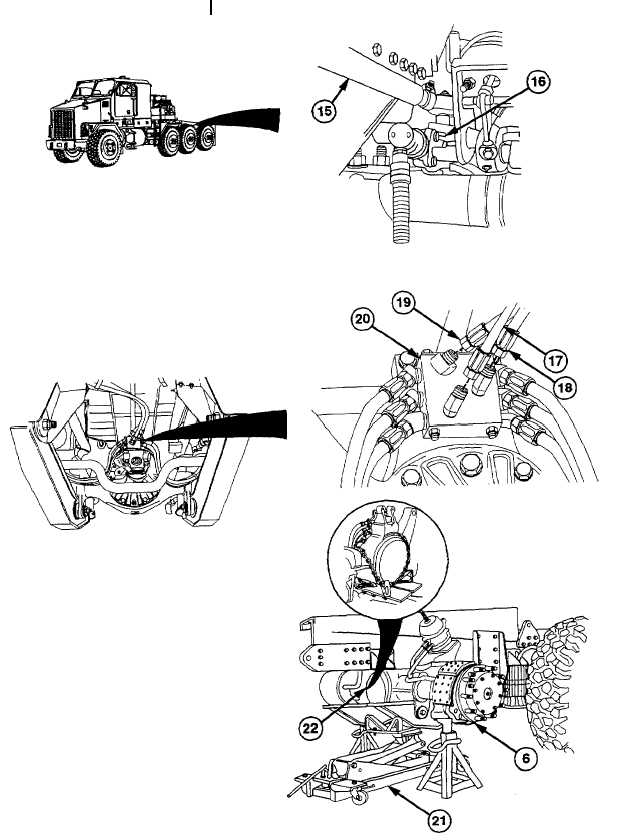

Remove drag link (15) from axle steering
arm (16) using hydraulic hand jack
NOTE
Protective caps should be placed on
fittings uncovered in step (9).
(9)
Remove three hoses no. 2144 (17), 2369
(18), and 2873 (19) from manifold (20).
WARNING
Support axle with transmission lift.
Secure axle to transmission lift with
strap or chain. Failure to comply
may result in serious injury to
personnel.
(10)
Place transmission lift (21) under axle
differential (22) to support axle (6).
(11)
Secure axle (6) to transmission lift (21).
10-24
|
