TM 9-2320-360-34-1
(2)

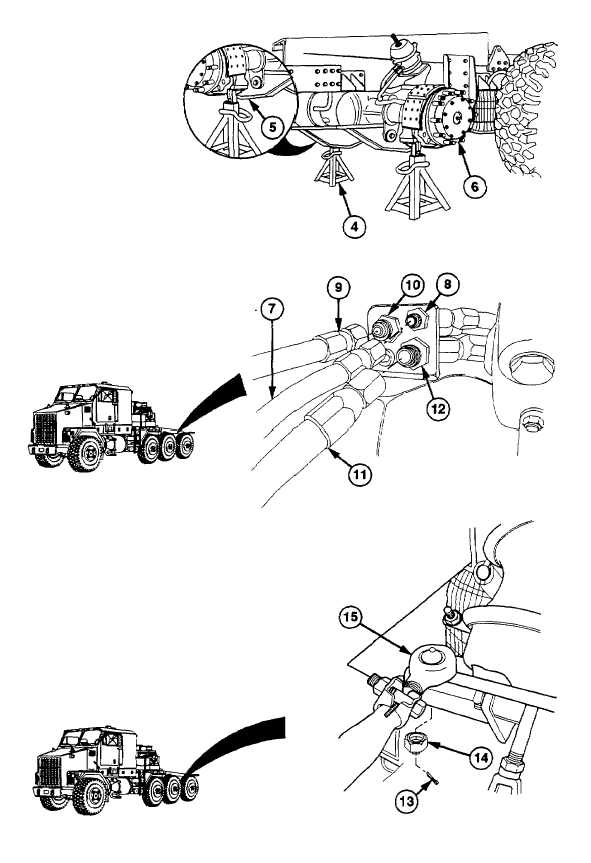

Place jackstand (4) under pivot and
spindle assembly (5) at each end of axle
(6).
(3)
Remove hose no. 2141 (7) from fitting (8).
(4)
Remove hose no. 2016 (9) from fitting
(10).
(5)
Remove hose no. 2873 (11) from fitting
(12).
WARNING
Support drag link after removing
hardware to prevent it from falling.
Failure to comply may result in
injury.
(6)
Remove cotter pin (13) from nut (14).
Discard cotter pin.
(7)
Remove nut (14) from drag link (15).
10-23
|
