TM 9-2320-360-34-1
10-3. AXLE NO. 3 REPLACEMENT
This task covers:
a. Removal
c. Follow-On Maintenance
b. Installation
INITIAL SETUP
Equipment Conditions
Tools and Special Tools (Cont)
Brake drums removed (axle no. 3 only)
Wrench, Open-End, 1-11/16 in. and 1-7/8 In.,
(TM 9-2320-360-20).
(Item 225, Appendix E)
Differential and wheel ends drained (axle no. 3
Wrench Set, Socket, 1 in. Drive (Item 230,
only) (LO 9-2320-360-12).
Appendix E)
Air springs removed (axle no. 3 only)
Wrench Set, Socket, 3/4 in. Drive (Item 231,
(TM 9-2320-360-20).
Appendix E)
Shock absorbers removed (axle no. 3 only)
Wrench, Torque, 0-600 Lb-Ft (Item 233,
(TM 9-2320-360-20).
Appendix E)
Propeller shafts removed (axle no. 2 to axle
no. 3 and axle no. 3 to axle no. 4)
Materials/Parts
(TM 9-2320-360-20).
Adhesive-Sealant (Item 8, Appendix B)
Lateral torque rod removed (para 15-3).
Caps, Shipping and Sealing (Item 13,
Appendix B)
Tools and Special Tools
Oil, Lubricating (Item 48, Appendix B)
Tool Kit, Genl Mech (Item 202, Appendix E)
Ties, Cable, Plastic, (item 60, Appendix B)
Adapter, Socket Wrench, 1/2 in. Female - 3/4
Bolt Kits, Beam Hanger (2) (Item 3, Appendix F)
in. Male (Item 3, Appendix E)
Bolt Kits, Bushing (2) (Item 4, Appendix F)
Jack, Floor, 10-Ton (Item 90, Appendix E)
Locknuts (2) (Item 87, Appendix F)
Jackstands (4) (Item 93, Appendix E)
Lockwashers (2) (Item 118, Appendix F)
Lift, Transmission and Differential (Item 95,
Appendix E)
Special Environmental Conditions
Multiplier, Torque (Item 99, Appendix E)
HET Tractor parked on hard, level surface.
Sling, Endless Strap (Item 161, Appendix E)
Wrench, Combination, 1-1/2 in. (Item 214,
Personnel Required
Appendix E)
Two
Wrench, Impact, Electric, 1 in. (Item 223,
Appendix E)
a.
Removal
(1)

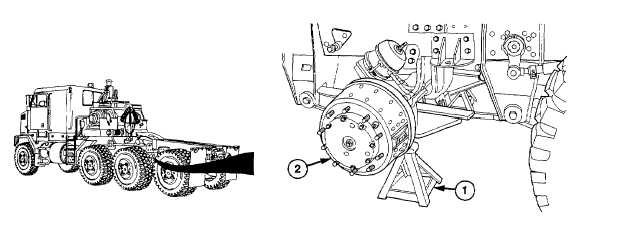

Place jackstand (1) under each end of axle assembly (2).
10-12
|
