TM 9-2320-360-34-1
(2)

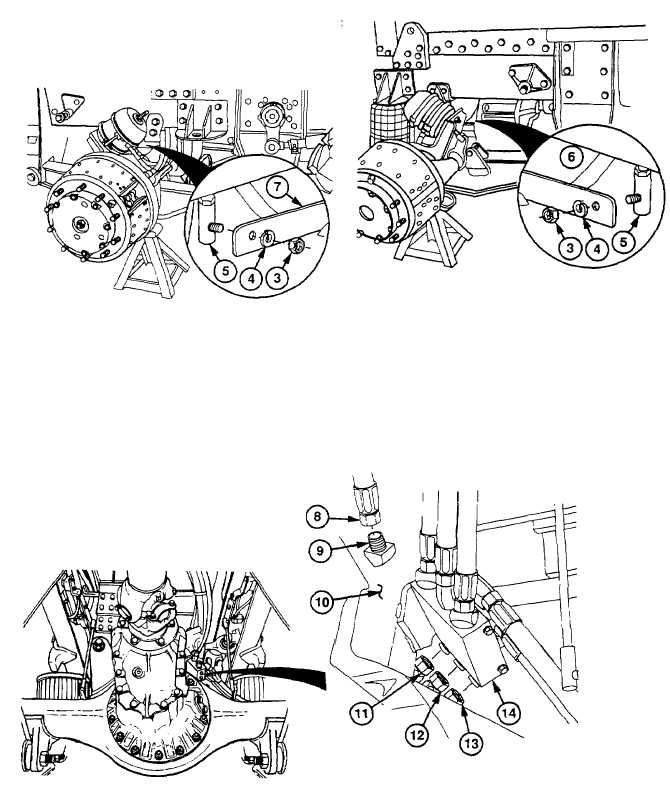

Remove nut (3), lockwasher (4), and ball
joint (5) from right side bracket (6).
Discard lockwasher.
(3)
Repeat step (2) for left side bracket (7).
NOTE
Protective caps should be placed on
fittings uncovered in steps (4) and
(5).
(4)
Remove hose no. 2422 (8) from fitting (9)
on differential (10).
(5)
Remove hoses no. 2106 (11), no. 2368
(12), and no. 2143 (13) from manifold
(14).
10-13
|
