TM 9-2320-360-34-1
(25)

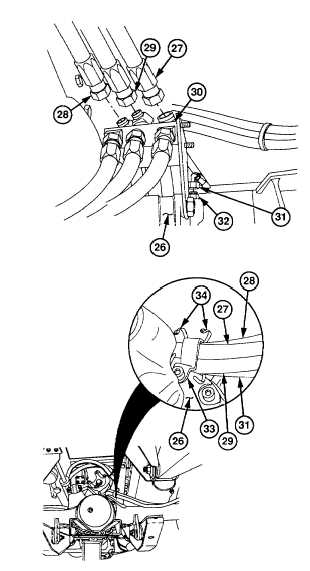

Install hose no. 2104 (27), no. 2075 (28),
and no. 2545 (29) on manifold (30).
(26)
Install hose no. 2339 (31) on fitting (32)
on differential (26).
NOTE
Plastic
cable
ties
should
be
positioned
in
locations
marked
during removal.
(27)
Secure hoses (27, 28, 29, and 31) to
bracket (33) on differential (26) with plastic
cable ties (34).
c.
Follow-On Maintenance
(1)
Install air springs (TM 9-2320-360-20).
(2)
Install transfer case to no. 2 axle and no.
2 axle to no. 3 axle propeller shafts
(TM 9-2320-360-20).
(3)
Install
shock
absorbers
(TM 9-2320-360-20).
(4)
Fill axle differential and wheel ends
(LO 9-2320-360-12).
(5)
Install brake drums (TM 9-2320-360-20).
(6)
Install lateral torque rod (para 15-3).
(7)
Align axle no. 2 (para 10-5).
10-11
|
