10-2. AXLE NO. 2 REPLACEMENT (CONT)
NOTE
It
may
be
necessary
to
tap
suspension beam out of axle bracket
and frame bracket.
(13)

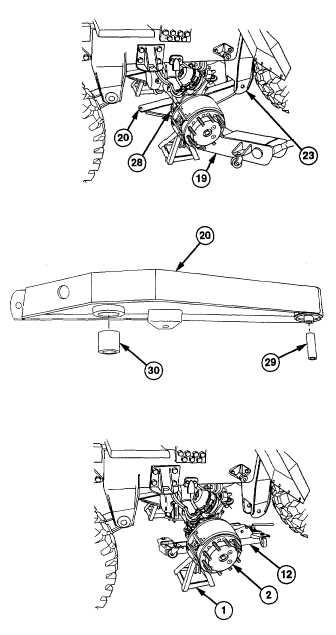

Lower
floor
jack
(19)
and
remove
suspension beam (20) from axle bracket
(28) and frame hanger (23).
(14)
Remove delrin liner (29) and steel sleeve
(30) from suspension beam (20). Discard
delrin liner and steel sleeve.
(15)
Repeat steps (10) thru (14) for other
suspension beam.
WARNING
Axle weighs approximately 1925 lb
(874 kg). Keep out from under axle.
Failure to comply may result in injury
or death to personnel.
NOTE
Air pressure must be greater than 65
psi (448 kPa) to provide sufficient
clearance to remove axle.
(16)
Raise transmission lift (12) enough to lift
axle assembly (2) and remove jackstands
(1).
(17)
Lower transmission lift (12) and axle (2) to
its lowest position.
(18)
Remove transmission lift (12) and axle (2)
from under HET tractor.
