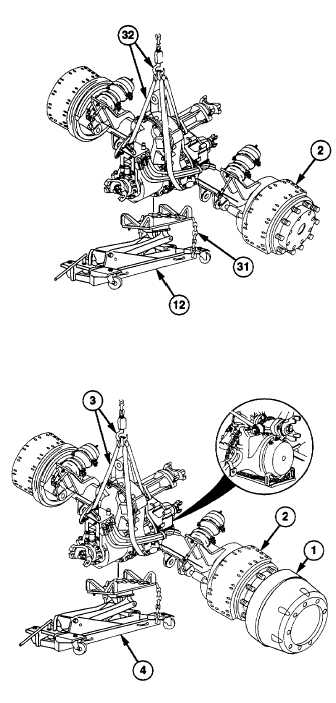

Remove chain (31) from axle (2) and
transmission lift (12).
(20)
Attach lifting device (32) to axle (2).
(21)
Lift axle (2) and remove from transmission
lift (12).
b.
Installation
(1)
Remove brake drums (1) from new axle
(2) (TM 9-2320-360-20).
(2)
Attach lifting device (3) to new axle (2).
WARNING
· Axle weighs approximately 1925 lb
(874 kg). Keep out from under axle.
Failure to comply may result in
injury or death to personnel.
· Support axle with transmission lift.
Secure axle to transmission lift with
strap or chain. Failure to comply
may result in serious injury to
personnel.
(3)
Lift axle (2) and position on transmission
lift (4).
(4)
Secure axle (2) to transmission lift (4).
