NOTE
Location of plastic cable ties should
be marked before removal.
(9)

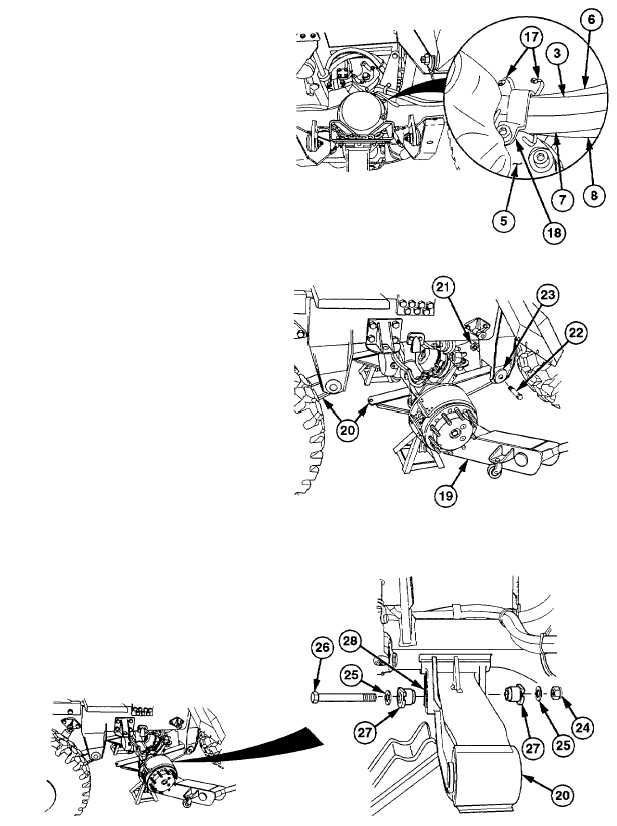

Remove plastic cable ties (17) securing
four hoses (3, 6, 7, and 8) to bracket (18)
on differential (5).
WARNING
Suspension beam is heavy and can
fall. Keep out from under suspension
beam. Failure to comply may result
in injury to personnel.
NOTE
Both suspension beams are removed
the same way. Right side is shown.
(10)
Place floor jack (19) under center of
suspension beam (20).
(11)
Remove locknut (21) and screw (22) from
suspension beam (20) and frame hanger
(23) with aid of assistant. Discard locknut
and screw.
NOTE
Screw, washer, and outside collar are
removed together.
(12)
Remove locknut (24), two washers (25),
screw (26), and two collars (27) from
suspension beam (20) and axle bracket
(28) with aid of assistant. Discard locknut,
washers, screw, and collars.
