TM 9-2320-360-34-1
10-2. AXLE NO. 2 REPLACEMENT (CONT)
WARNING
Support axle with transmission lift.
Secure axle to transmission Iift with
strap or chain. Failure to comply
may result in serious injury to
personnel.
(5)

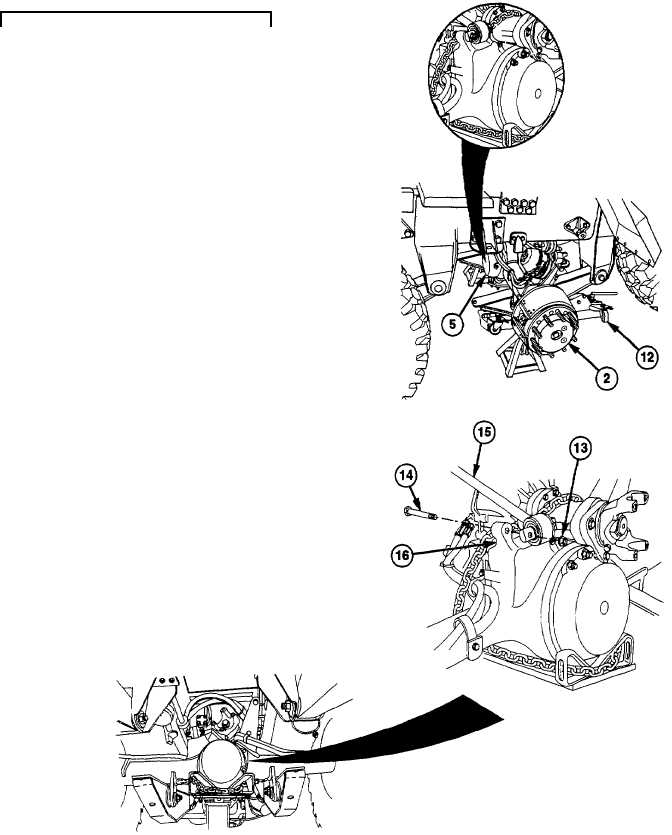

Place transmission lift (12) under axle
differential (5) to support axle (2).
(6)
Secure axle (2) to transmission lift (12).
WARNING
Axle assembly may rotate forward
during removal of longitudinal torque
rod. Keep hands and feet away from
axle. Failure to comply may result in
serious injury to personnel.
(7)
Remove two locknuts (13), screws (14),
and longitudinal torque rod (15) from axle
housing (16). Discard locknuts.
(8)
Secure longitudinal torque rod (15) out of
the way after removing it from axle (2).
10-4
|
