9-4. AXLE NO. 1 PIVOT, SPINDLE, AND AXLE SHAFT REPAIR (CONT)

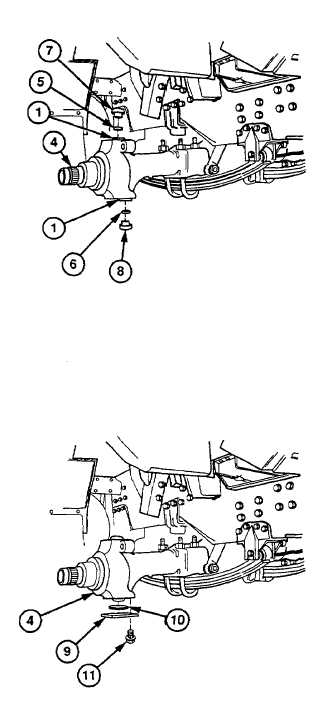

(4)
Coat link collars (1), seals (5 and 6), and
link pins (7 and 8) with grease.
NOTE
Seal must be installed with metal side
against link pin.
(5)
Install seal (5) on link pin (7).
(6)
Install link pin (7) through pivot and
spindle assembly (4) into link collar (1)
until metal edge of seal (5) is visible inside
pivot and spindle assembly (4).
NOTE
Seal must be installed with metal side
against link pin.
(7)
Install seal (6) on link pin (8).
(8)
Install link pin (8) through pivot and
spindle assembly (4) into link collar (1)
until metal edge of seal (6) is visible inside
pivot and spindle assembly (4).
WARNING
On direct contact, uncured silicone
sealant irritates eyes. In case of
contact, flush eyes with water and
seek medical attention. In case of
skin contact, wipe off and flush with
water.
(9)
Coat mating surfaces of lower cover (9)
and pivot and spindle assembly (4) with
silicone adhesive-sealant.
(10)
Install shim (10) and lower cover (9) on
pivot and spindle assembly (4) with four
screws (11). Torque to 250 lb-ft (340
Nm), then to 500 lb-ft (670 Nm), then to
720-800 lb-ft (976-1085 Nm).
