TM 9-2320-360-34-1
WARNING
Wear eye protection and use care
when
installing
retaining
rings.
Retaining rings are under spring
tension and can act as projectiles
when released causing severe eye
injury.
NOTE
Seal is installed with flat side facing
out.
(10)

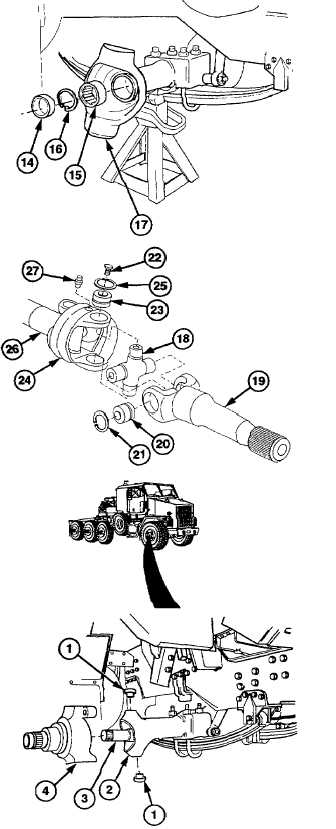

Install bearing (15), retaining ring (16),
and new seal (14) in axle housing (17).
CAUTION
Use
care
when
installing
caps.
Needle bearings may fall out of
position and be damaged.
(11)
Install new cross (18) on shaft (19) with
two caps (20).
WARNING
Wear eye protection and use care
when
installing
retaining
rings.
Retaining rings are under spring
tension and can act as projectiles
when released causing severe eye
injury.
(12)
Install two new retaining rings (21) on
shaft (19).
(13)
Install two new screws (22) in new caps
(23).
(14)
Install shaft (19) in block (24) with two
caps (23).
(15)
Install two new retaining rings (25) in block
(24).
(16)
Repeat steps (1) through (5) to install
other shaft (26) into block (24).
(17)
Install two grease fittings (27) in block
(24).
e.
Installation
NOTE
·
Installation procedures are the
same for both ends of axle.
·
Do step (1) only if link collars
were removed.
(1)
Insert link collars (1) into axle housing (2).
(2)
Install axle shaft (3) in axle housing (2).
Change 1 9-19
|
