TM 9-2320-360-34-1
9-4. AXLE NO. 1 PIVOT, SPINDLE, AND AXLE SHAFT REPAIR (CONT)
d.
Assembly
WARNING
Adhesive-sealant can bum easily, can
give off harmful vapors, and is
harmful to skin and clothing. To
avoid
injury
or
death,
keep
compound away from open fire and
use in well-ventilated area. If
adhesive-sealant gets on skin or
clothing, wash immediately with soap
and water.
NOTE
Do steps (1) and (2) only if seal race
was removed.

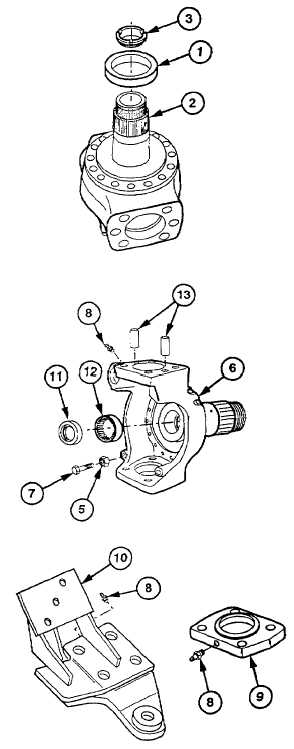

(1)
Coat inside surface of seal race (1) and
spindle ring (3) with adhesive-sealant.
(2)
Install seal race (1) on spindle (2).
NOTE
Do step (3) only if spindle ring was
removed.
(3)
Install spindle ring (3) on spindle (2).
(4)
Install jamnut (5) and steering stop bolt (7)
on pivot and spindle housing (6).
(4.1)
Tighten jam nut (5) on steering stop bolt
(7).
(5)
Install three grease fittings (8) in lower
cover (9), steering arm (10), and pivot and
spindle housing (6).
(6)
Lightly coat new seal (11) and bearing
(12) with grease.
NOTE
Seal is installed with flat side facing
out.
(7)
Install bearing (12) and new seal (11) on
pivot and spindle housing (6).
NOTE
Do step (8) only if pins were
removed.
(8)
Install two pins (13) in pivot and spindle
housing (6).
9-18 Change 1
|
