TM 9-2320-360-34-1
(7)

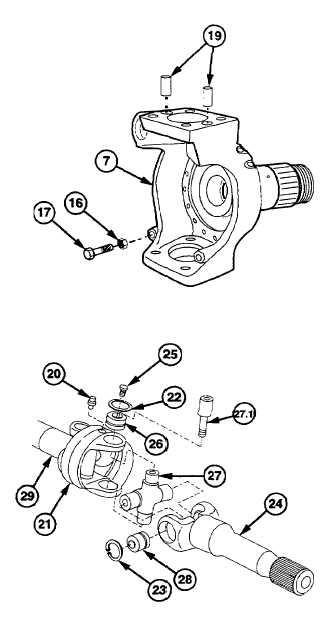

Loosen jamnut (16) on steering stop bolt
(17).
(7.1)
Remove steering stop bolt (17) and
jamnut
(16)
from
pivot
and
spindle
housing (7).
NOTE
Do
step
(8)
only
if
pins
fail
inspection.
(8)
Remove two pins (19) from pivot and
spindle housing (7).
(9)
Remove two grease fittings (20) from
block (21).
WARNING
Wear eye protection and use care
when
removing
retaining
rings.
Retaining rings are under spring
tension and can act as projectiles
when released causing severe eye
injury.
(10)
Remove two retaining rings (22) from
block (21). Discard retaining rings.
(11)
Remove two retaining rings (23) from
shaft (24). Discard retaining rings.
(12)
Remove two screws (25) from caps (26).
Discard screws.
(13)
Remove two caps (26) from cross (27)
using adapter (27.1). Discard caps.
(14)
Remove shaft (24) from block (21).
NOTE
Tag and mark cross to aid in
installation.
(15)
Remove two caps (28) and cross (27)
from shaft (24) using press. Discard caps
and cross.
(16)
Repeat steps (10) through (15) to remove
other shaft (29) from block (21).
c.
Cleaning/Inspection
(1)
Clean old gasket material from housing and caps.
WARNING
Dry cleaning solvent P-D-680 is toxic and flammable. Wear protective goggles and
gloves and use only in a well-ventilated area. Avoid contact with skin, eyes, and
clothes, and don't breathe vapors. DO NOT use near open flame or excessive heat.
The flash point is 100-138° F (38-59° C). If you become dizzy while using cleaning
solvent, get fresh air immediately and medical aid. If contact with eyes is made,
wash your eyes with water and get medical aid immediately.
Change 1 9-17
|
