TM 9-2320-360-34-1
9-4. AXLE NO. 1 PIVOT, SPINDLE, AND AXLE SHAFT REPAIR (CONT)
b.
Disassembly
WARNING
Wear eye protection and use care
when
removing
retaining
rings.
Retaining rings are under spring
tension and can act as projectiles
when released causing severe eye
injury.

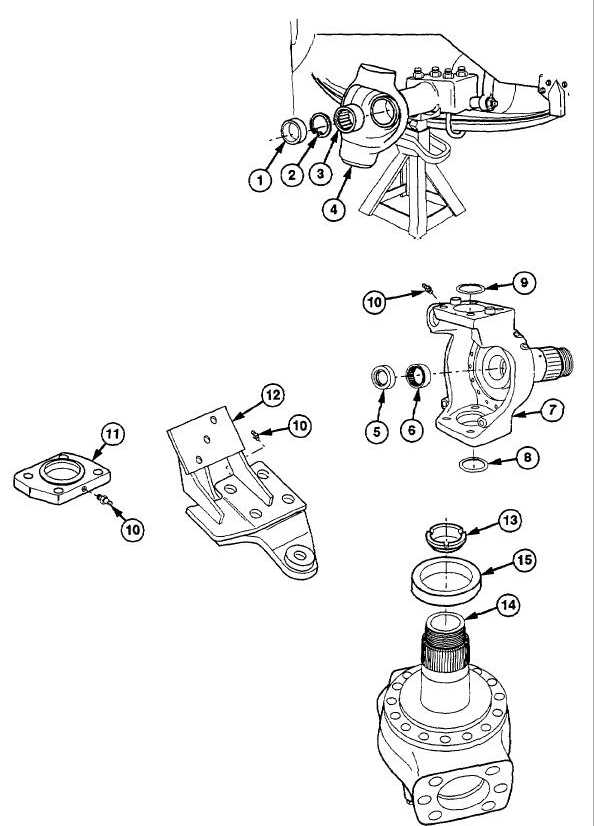

(1)
Remove seal (1), retaining ring (2), and
bearing (3) from axle housing (4). Discard
seal.
(2)
Remove seal (5) and bearing (6) from
pivot and spindle housing (7). Discard
seal.
(3)
Remove two oil seals (8 and 9) from pivot
and spindle housing (7). Discard seals.
(4)
Remove three grease fittings (10) from
lower cover (11), steering arm (12), and
pivot and spindle housing (7).
NOTE
Do step (5) only if spindle ring fails
inspection criteria.
(5)
Remove spindle ring (13) from spindle
(14).
CAUTION
Use chisel on seal race surface only.
Do not allow chisel to contact
spindle. Failure to comply may result
in damage to equipment.
NOTE
Do step (6) only if seal race fails
inspection.
(6)
Remove seal race (15) from spindle (14)
with chisel.
9-16
|
