TM 9-2320-360-34-1
(11)

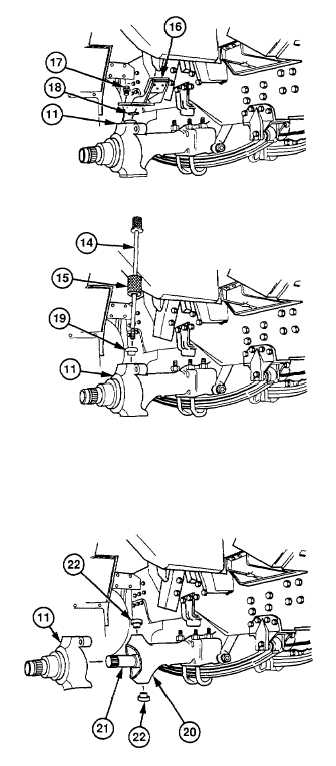

Matchmark steering arm (16) with pivot
and spindle assembly (11).
(12)
Remove four screws (17), steering arm
(16), and shim (18) from pivot and spindle
assembly (11). Tag screws and shim.
(13)
Remove link pin (19) from pivot and
spindle assembly (11) using king pin
extractor (14) and slide hammer (15).
(14)
Remove pivot and spindle assembly (11)
from axle housing (20) with aid of
assistant. Place assembly on clean work
surface.
NOTE
Differential oil may drain from axle
housing.
(15)
Remove axle shaft (21) from axle housing
(20).
NOTE
Do step (16) only if link collars fail
inspection.
(16)
Remove
link
collars
(22)
from
axle
housing (20) using puller.
9-15
|
