TM 9-2320-360-34-1
9-4. AXLE NO. 1 PIVOT, SPINDLE, AND AXLE SHAFT REPAIR (CONT)
NOTE
·
Removal procedure is the same
for both ends of axle.
·
Four screws removed from lower
cover in step (8) are not same
size as screws removed from
swivel arm in step (12). Identify
screws after removal to aid in
installation.

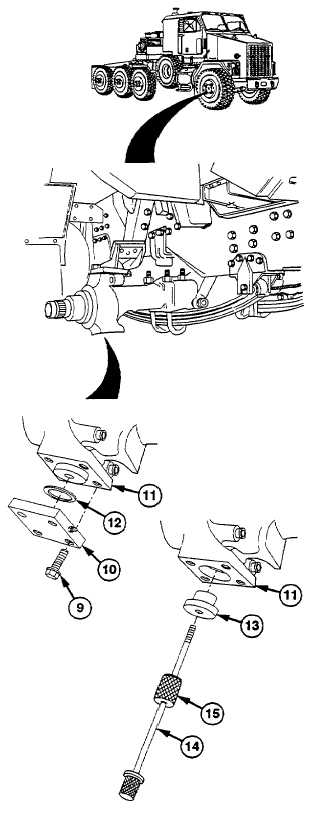

(8)
Remove four screws (9) and lower cover
(10) from pivot and spindle assembly (11).
Tag screws.
NOTE
Shim may stay on pivot and spindle
assembly.
(9)
Remove shim (12) from lower cover (10).
Tag shim.
(10)
Remove link pin (13) from pivot and
spindle assembly (11) using king pin
extractor (14) and slide hammer (15).
9-14
|
